Digital Advantage 45
Overview

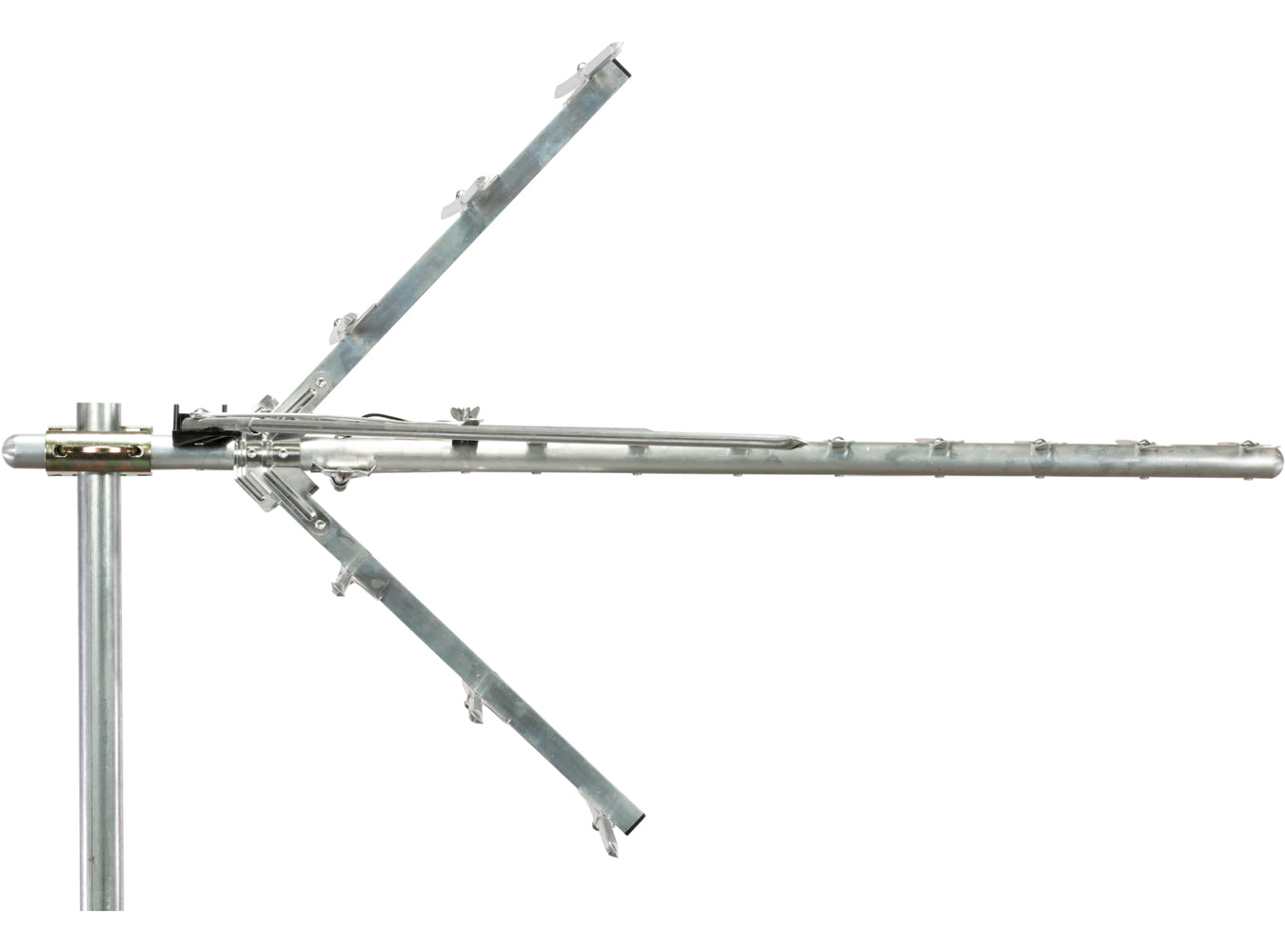

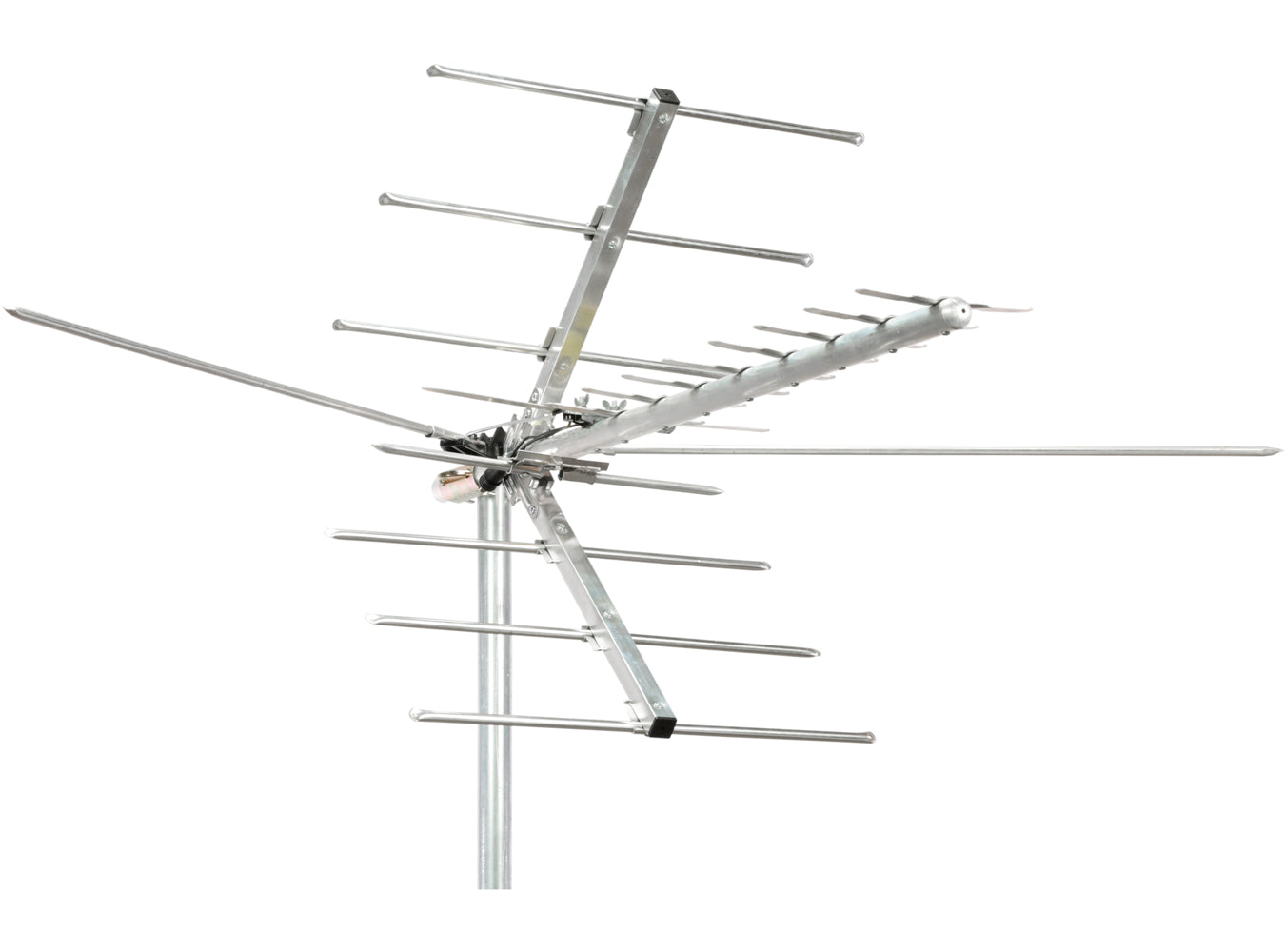

The Digital Advantage 45 is a directional (yagi), line-of-sight outdoor antenna that receives high definition and digital signals from a single direction and is optimized for high VHF and UHF signals. This antenna has a reception range of up to 45 miles.
Recommended Alternative: Pro-Model Antenna
The Pro-Model antenna is highly recommended by Channel Master antenna engineers because it will provide a much better customer experience. - It is easier to assemble and mount, it will hold up better in extreme weather, it is upgradable and repairable, and it’s made in the USA. To learn more about the Pro-Model Antenna, Click Here.
Short range directional (line of sight) outdoor TV antenna up to 45 miles.
What’s Included
Digital Advantage 45 |

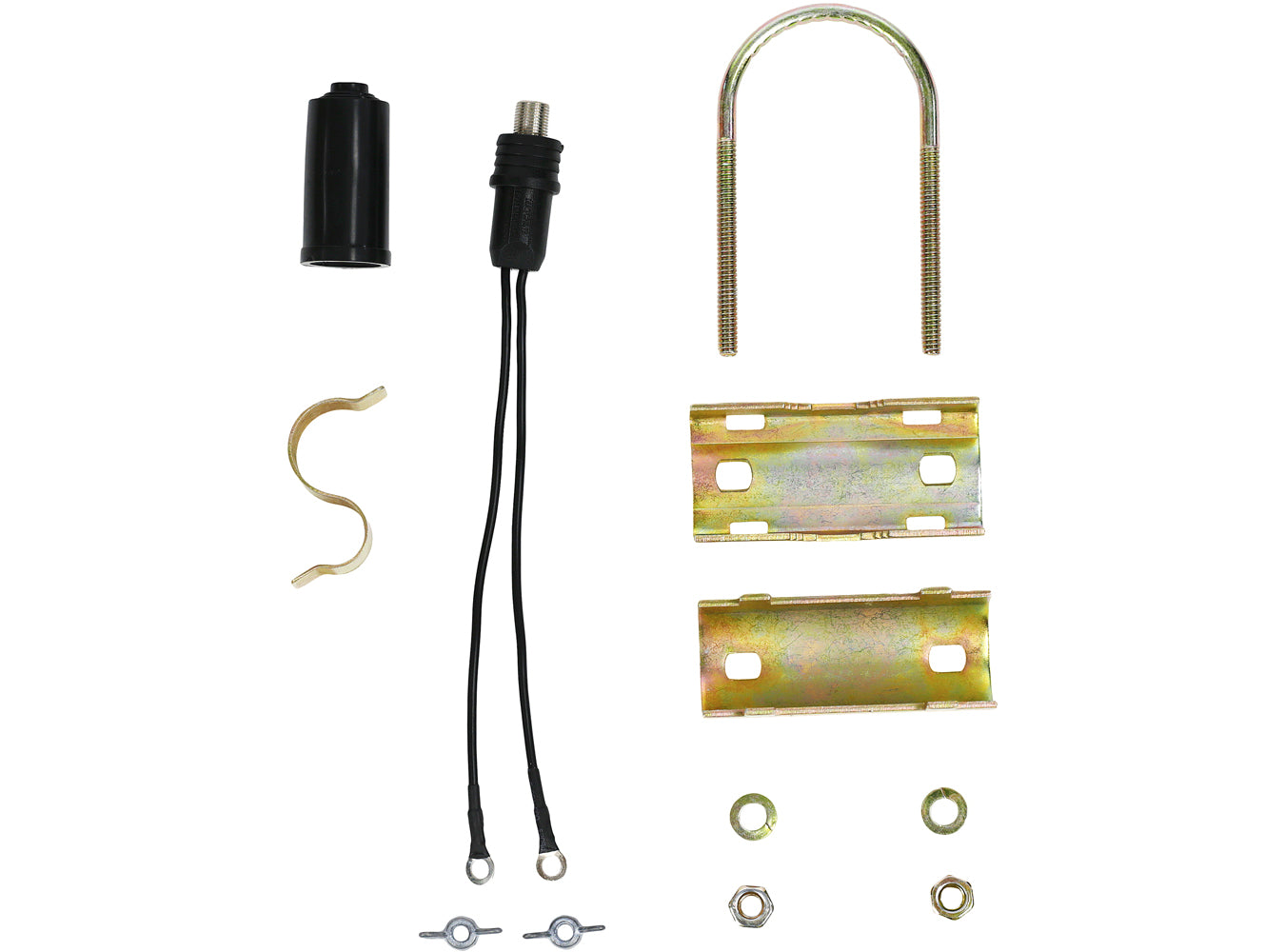

Hardware (Mast, Amplifier and Coax Cable Not Included) |
Installation Guide |
1-Year Limited Warranty |
Features
Reception Range | 45 Miles |
Type | Outdoor |
Reception Pattern | Directional |
Built-In Amplifier | No |
Installation | Roof, Attic, Mast, Eave, Chimney |
Tech Specs
Electrical Specifications
Bandwith | 174 to 216 and 470 to 700 MHz |
VHF Gain | 2.5dB |
UHF Gain | 8.5dB |
Front to Back Ratio | 10dB |
Return Loss | N/A |
Impedance | 300 Ohm (75 Ohm balun included) |
Mechanical Specifications
Boom Length | 36.5" |
Number of Elements | 22 |
Max Element Width | 47.5" |
Mounting Clamp | U bolt up to 1.75" |
Turning Radius | 3 ft. |
Output Connector | F-type |

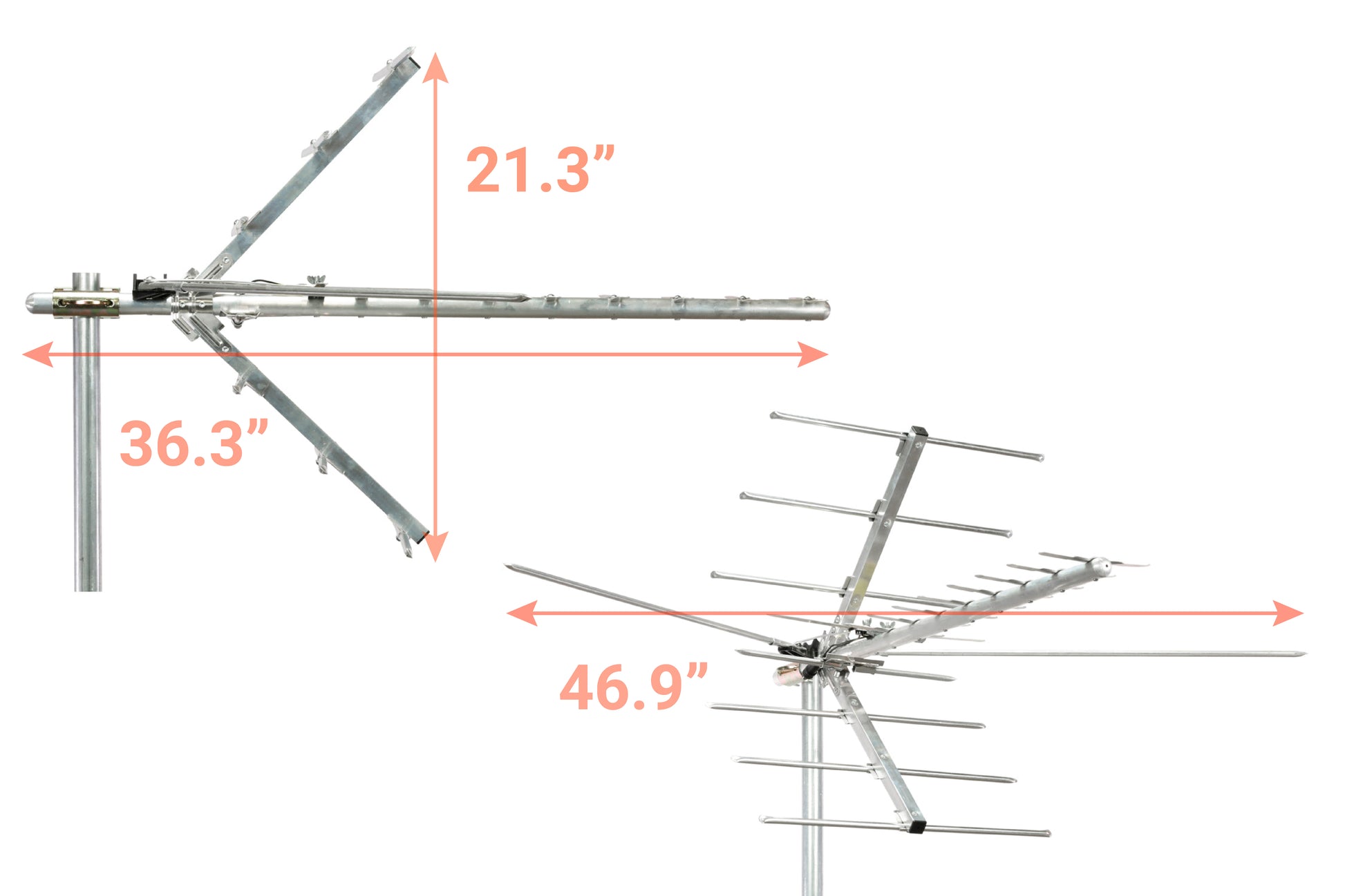

Size (product) | 46.9 x 36.3 x 21.3 in |
Size (packaging) | 37.25 x 5.75 x 5.5 in |
Weight (product) | 1.5 lb |
Weight (packaging) | 3.5 lb |
Wind Resistance | (at 100 mph, no ice) – 22 lb |
