Masterpiece 45
Overview
The Masterpiece 45 is a directional (log periodic), line-of-sight outdoor TV antenna that receives high definition and digital signals from a single direction. This antenna has a reception range of up to 45 miles and is designed to withstand extreme outdoor conditions.
Recommended Alternative: Pro-Model Antenna
The Pro-Model antenna is highly recommended by Channel Master antenna engineers because it will provide a much better customer experience. - It is easier to assemble and mount, it will hold up better in extreme weather, it is upgradable and repairable, and it’s made in the USA. To learn more about the Pro-Model Antenna, Click Here.
Short range directional (line of sight), rugged outdoor TV antenna up to 45 miles.
What’s Included
| Masterpiece 45 |
| Hardware (Mast, Amplifier and Coax Cable Not Included) |
| Installation Guide |
| 1-Year Limited Warranty |
Features
| Reception Range | 45 Miles |
| Type | Outdoor |
| Reception Pattern | Directional |
| Built-In Amplifier | No |
| Installation | Roof, Attic, Mast, Eave, Chimney |
Tech Specs
Electrical Specifications
| Bandwidth | 54 to 216 and 470 to 700 MHz |
| VHF Gain | 7.0 dB |
| UHF Gain | 12.0 dB |
| Front to Back Ratio | 12.0 dB |
| Return Loss | N/A |
| Impedance | 300 Ohm (75 Ohm balun included) |
Mechanical Specifications
| Boom Length | 48" |
| Number of Elements | 15 |
| Max Element Width | 100.5" |
| Mounting Clamp | U-bolt up to 2.5" |
| Turning Radius | 60" |
| Output Connector | F-type |
| UPC | 020572050166 |
| Size (product) | 100" x 50" x 4" |
| Weight (product) | 6 lb |
| Wind Resistance | (at 100 mph, no ice) – 20 lb |
Customer Reviews

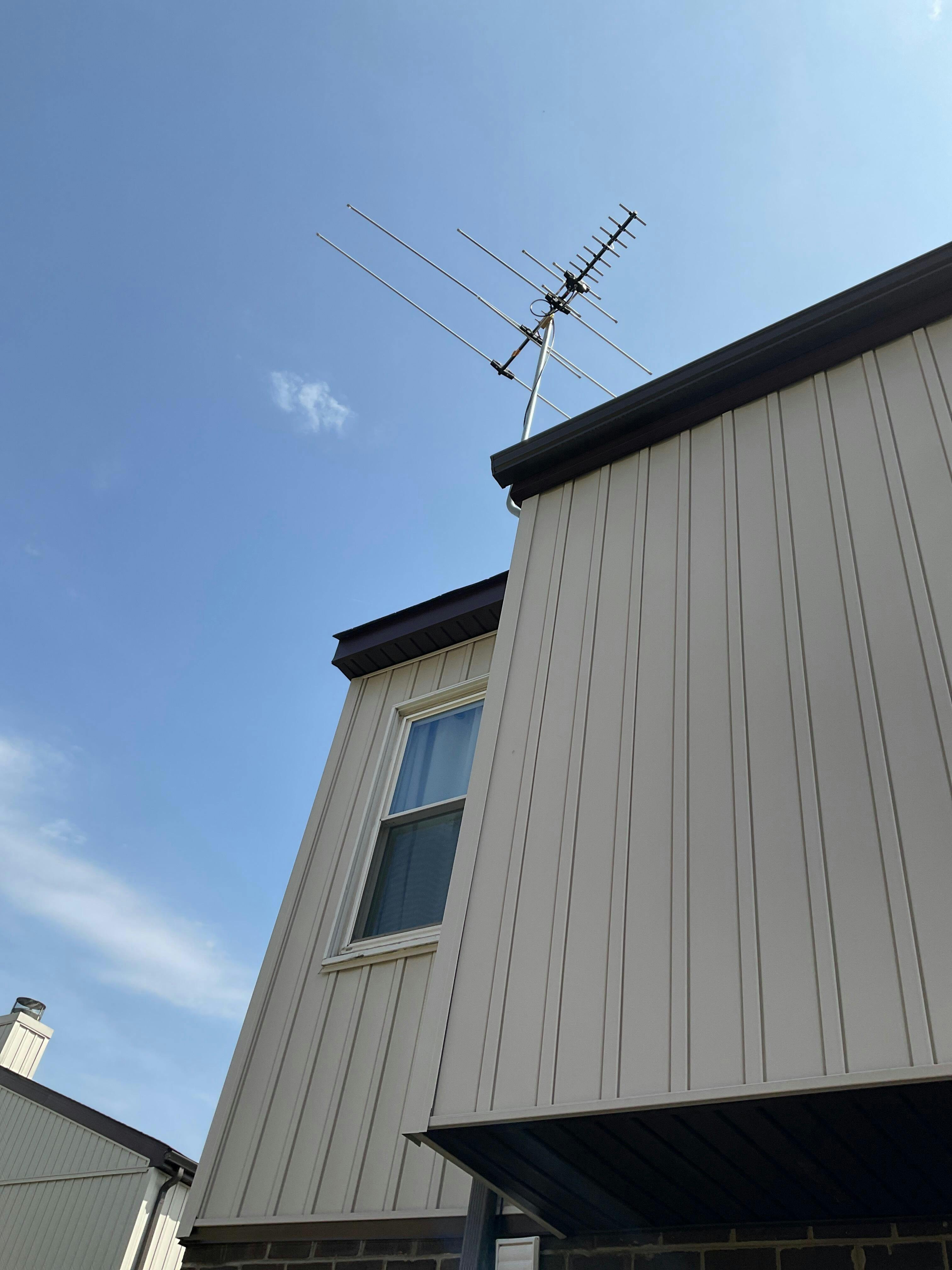

I had this antenna recommended by the Tyler Antenna man who has a you tube channel. I had it installed on my roof by an antenna installer. It picks up all the channels available in my area flawlessly. It’s barely noticeable on my roof
Very easy to install, great reception. The printed instructions are a little hard to use, but the videos on the website are very clear.
After researching and eliminating almost all other antennas, I decided to purchase the Masterpiece 45 model as Getting a little older I don’t want to be repeatedly climbing up and down to the roof , I really wanted METV channel 2-1 I’m my area , ( Ridley Park ,PA ) and as soon as I put it up and made a quick connection to my new converter box I had that channel plus several other Low band channels, very satisfied with my purchase and believe I will get many years of good use out of this Antenna , Didn’t even need the signal booster recommended, but would like to try one just to see if it brings in any more channels, Thanks again
I purchased this to be my ota source to run a tv via generator during power outages from storms/hurricanes. Often we go for days without power on our grid so keeping up with news & entertainment is important. I have it capable to connect to up to 4 5' poles, grounded, and capable of being lashed down to my pergola. This antenna can pick up Cocoa Beach which is 73 miles due South of my location and can bring in a total of 75 stations pointed in the Southern line of sight. I didn't try aiming North. I spent two months researching, including a local antenna installer, and The Antenna Man Channel (YouTube) helped convince me Channel Master was weather worthy. No regrets whatsoever and although disappointed I couldn't get the '60' model I am totally satisfied with the quality build and performance of the '45'. Highly recommend this antenna.
My review here was unsolicited, and I do NOT work for, or have any connection with Channel Master. This antenna was super easy to install. It is about 6lbs, so you do not need a large, tall mast to mount on unless you have a big height to overcome. If you do not need a very tall mast, the Channel Master universal swivel mount easily supports this antenna. I like the fact that the under carriage of the antenna houses the connection for the F connector and coax cable so there is nothing dangling in the wind. The rubber boot provided ensures a tight seal of the F connector so nothing enters the connection. Before you buy an antenna, place your address into the Channel Master look-up tool, or go to AntennaWeb.org in order to determine the distance to your local TV station transmission towers. Most stations now are UHF transmissions, but if some of your local stations like ABC transmit on VHF bands, then you need an antenna like this one that handles both UHF and VHF. This antenna has a 45 mile range, but CM makes them in 60 miles or greater.
One note to remember once your antenna arrives. The factory mistakenly labeled the Masterpiece 45 mile antenna as a 60 mile antenna. It's okay. The antenna in the box is really the one you ordered (Masterpiece 45 product # CM5016).
