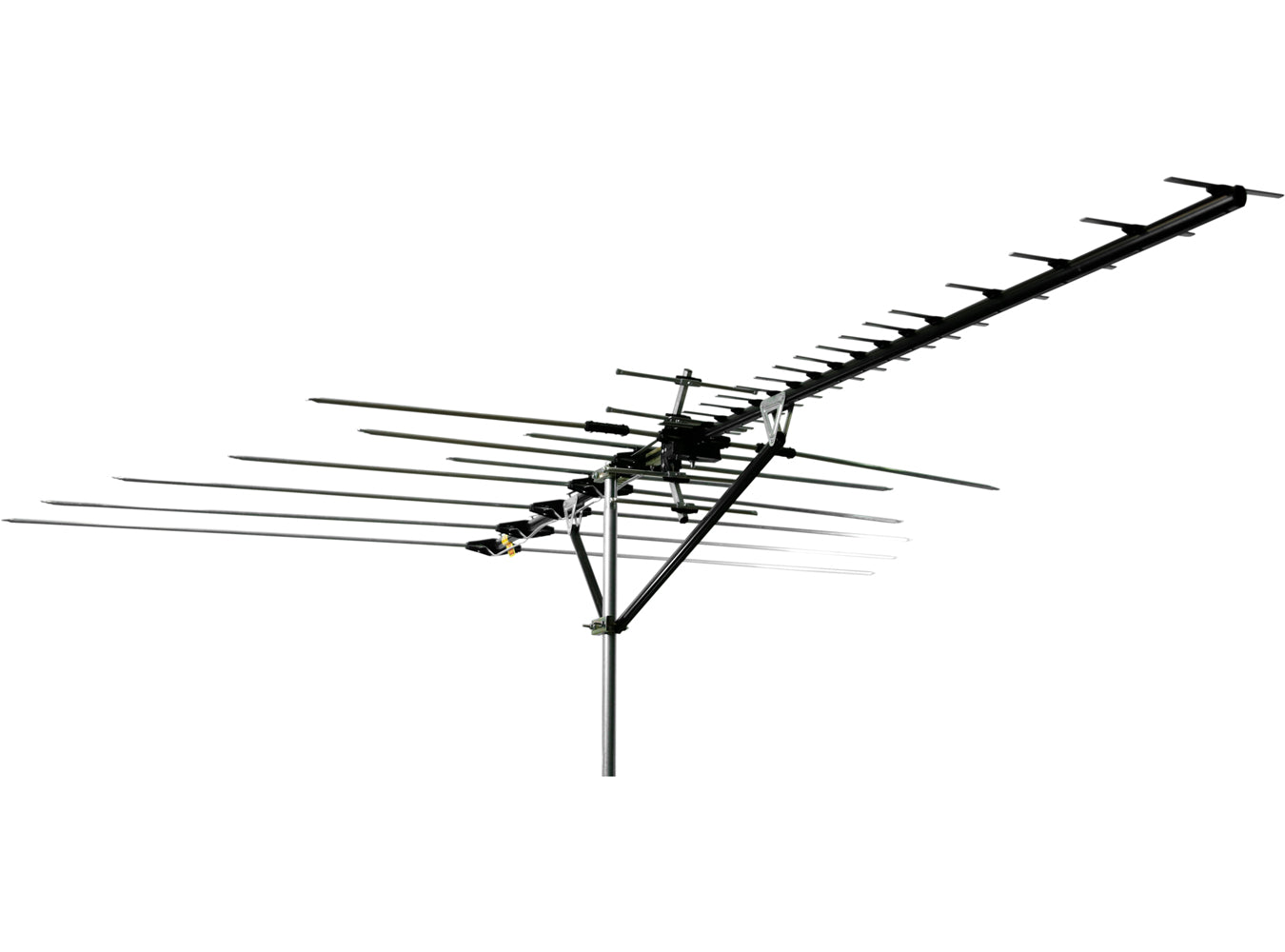

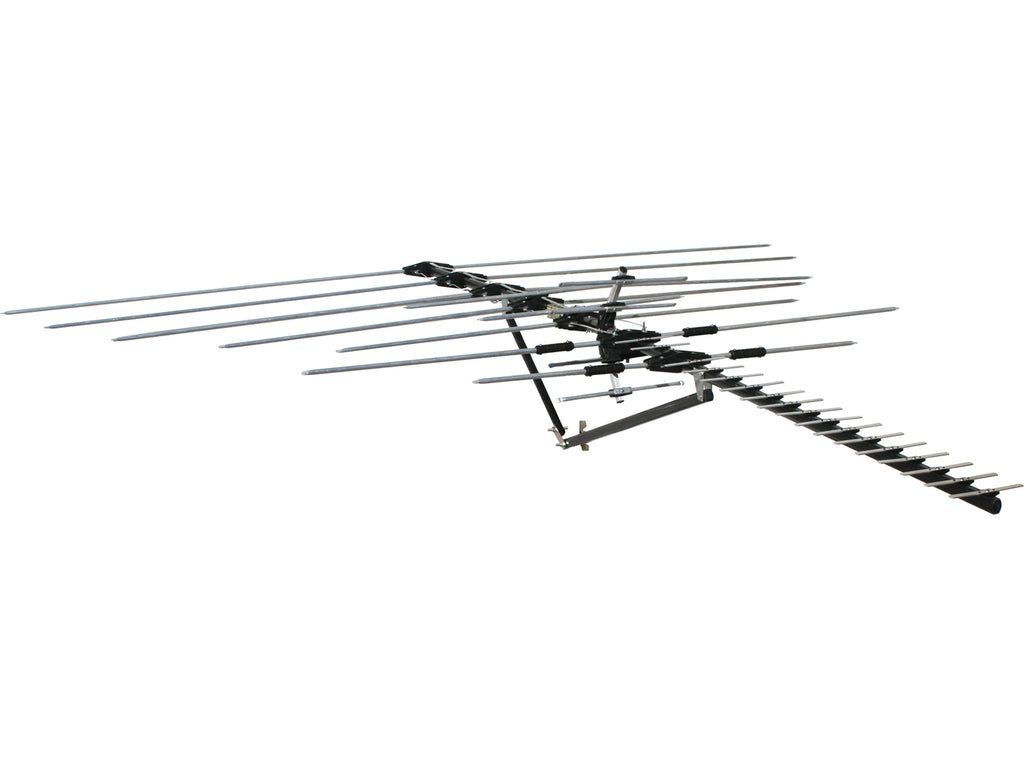

Masterpiece 100
The Masterpiece 100 is a directional (log periodic), line-of-sight outdoor TV antenna that receives high definition and digital signals from a single direction. This antenna has a reception range of up to 100 miles and is designed to withstand extreme outdoor conditions.
$249.00
- Overview
- Specifications
- Reviews
-
$249.00
Overview
The Masterpiece 100 is a directional (log periodic), line-of-sight outdoor TV antenna that receives high definition and digital signals from a single direction. This antenna has a reception range of up to 100 miles and is designed to withstand extreme outdoor conditions.
Long range directional (line of sight), rugged outdoor TV antenna up to 100 miles
What’s Included
Masterpiece 100 |

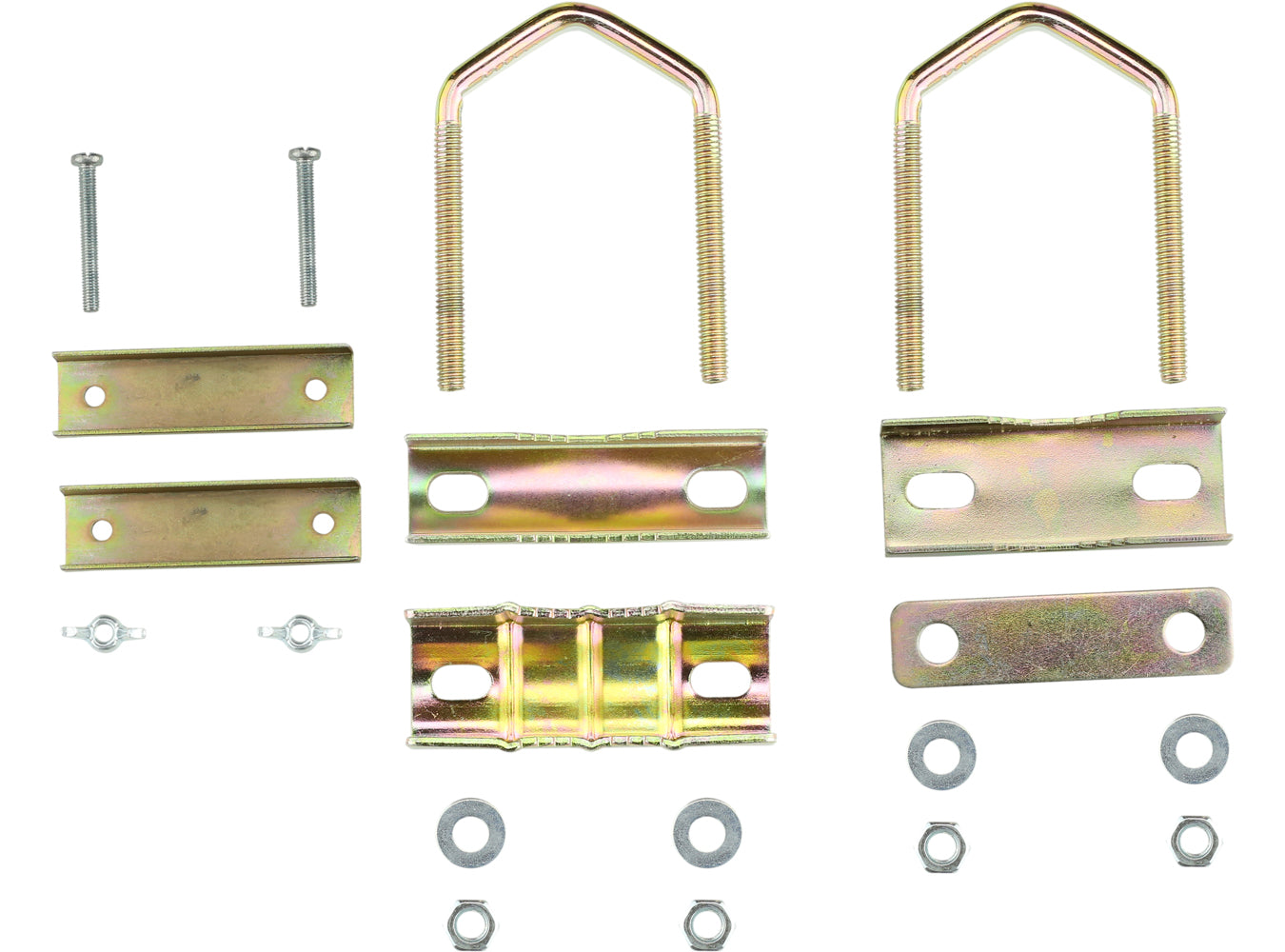

Hardware (Mast, Amplifier and Coax Cable Not Included) |
Installation Guide |
1-Year Limited Warranty |
Features
Reception Range | 100 Miles |
Type | Outdoor |
Reception Pattern | Directional |
Built-In Amplifier | No |
Installation | Roof, Mast, Eave, Chimney |
Tech Specs
Electrical Specifications
Bandwith | 54 to 216 and 470 to 700 MHz |
VHF Gain | 10dB |
UHF Gain | 16dB |
Front to Back Ratio | 17dB |
Return Loss | N/A |

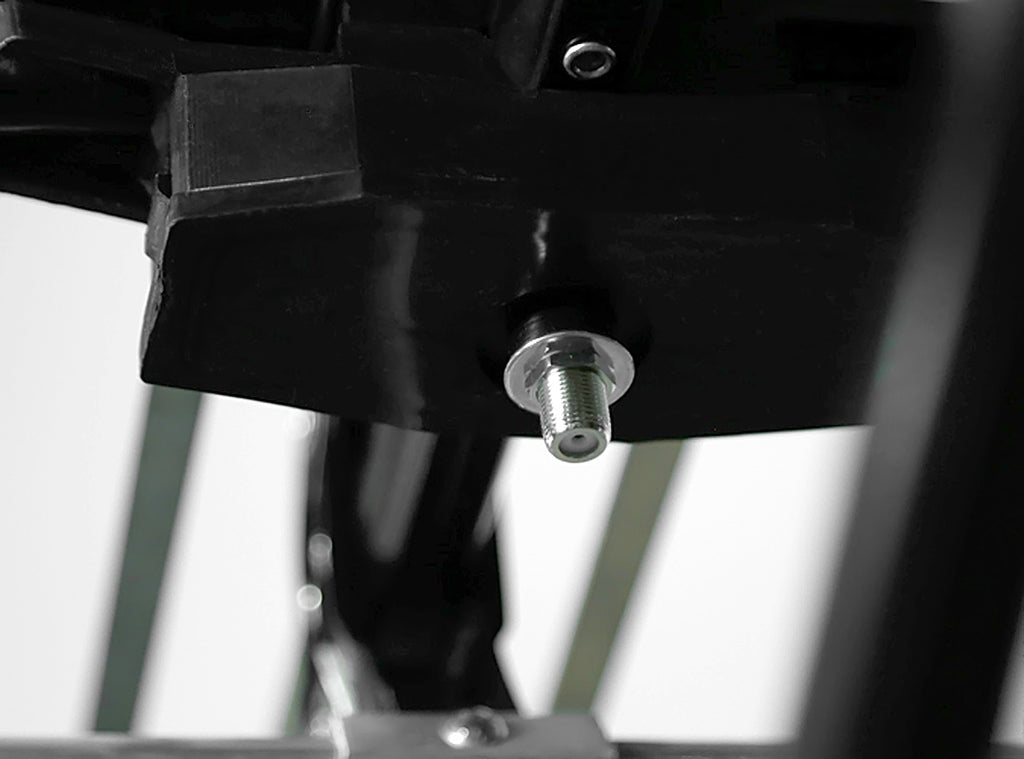

Impedance | 300 Ohm (75 Ohm balun included) |
Mechanical Specifications

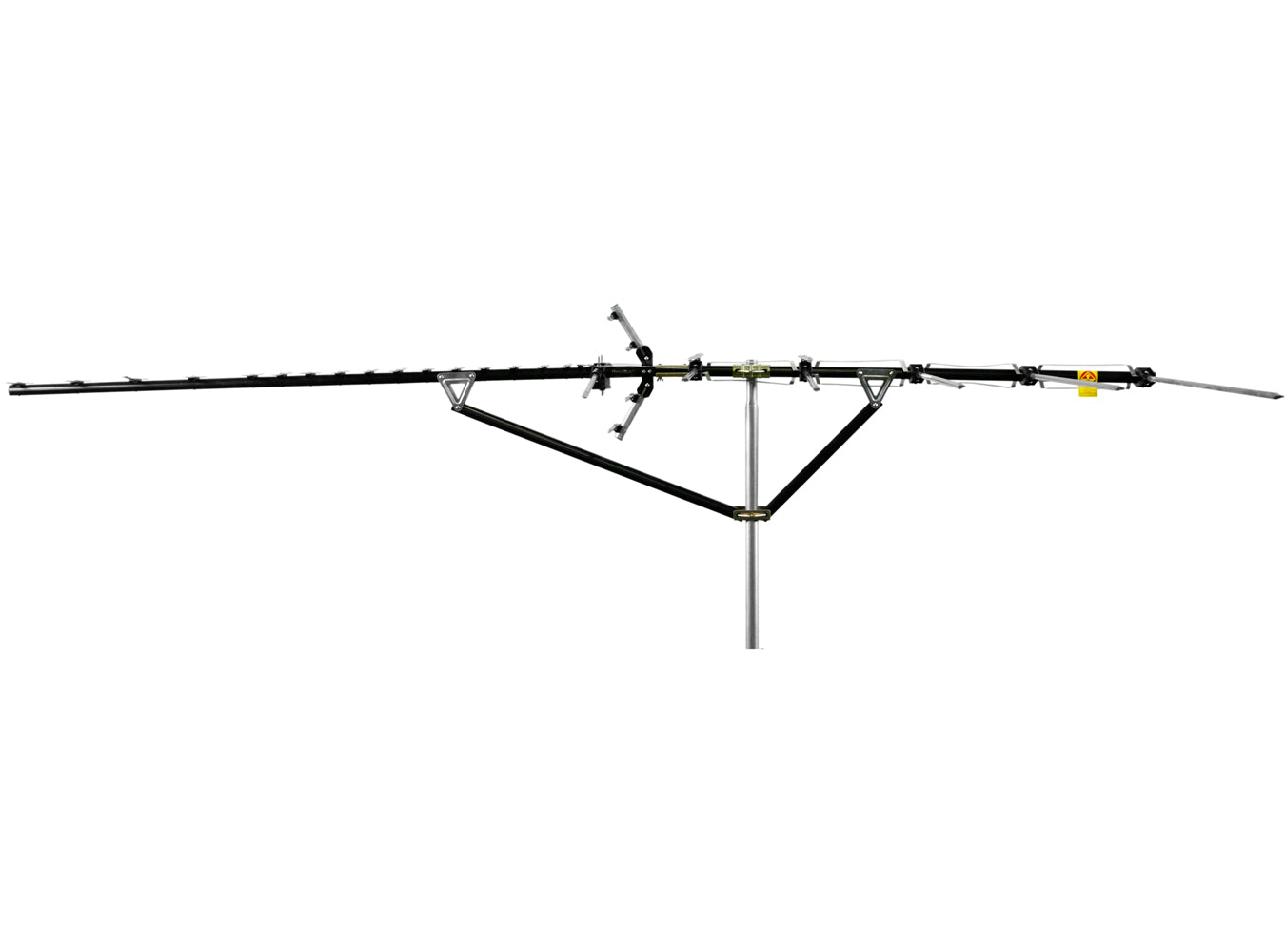

Boom Length | 109" |

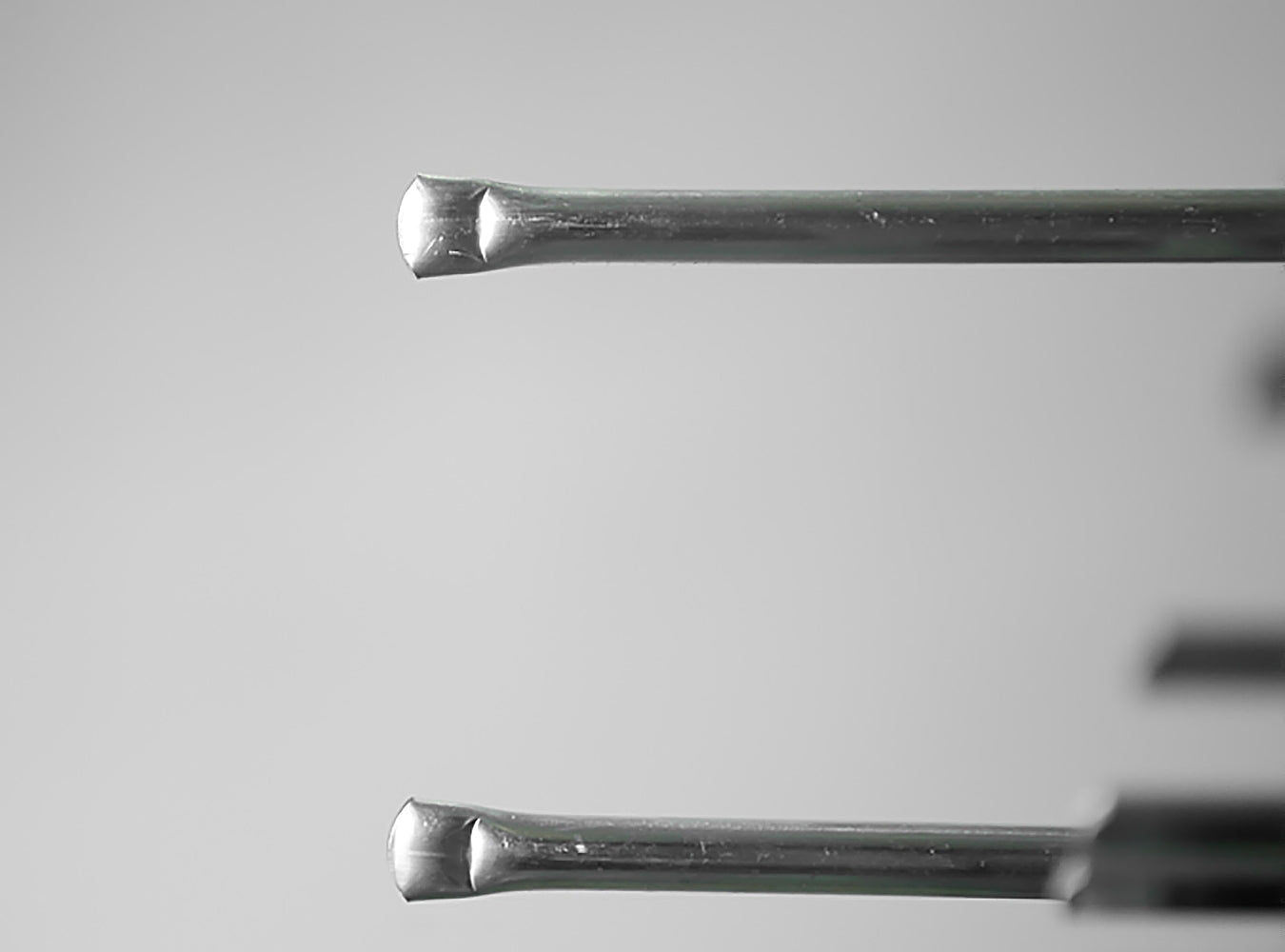

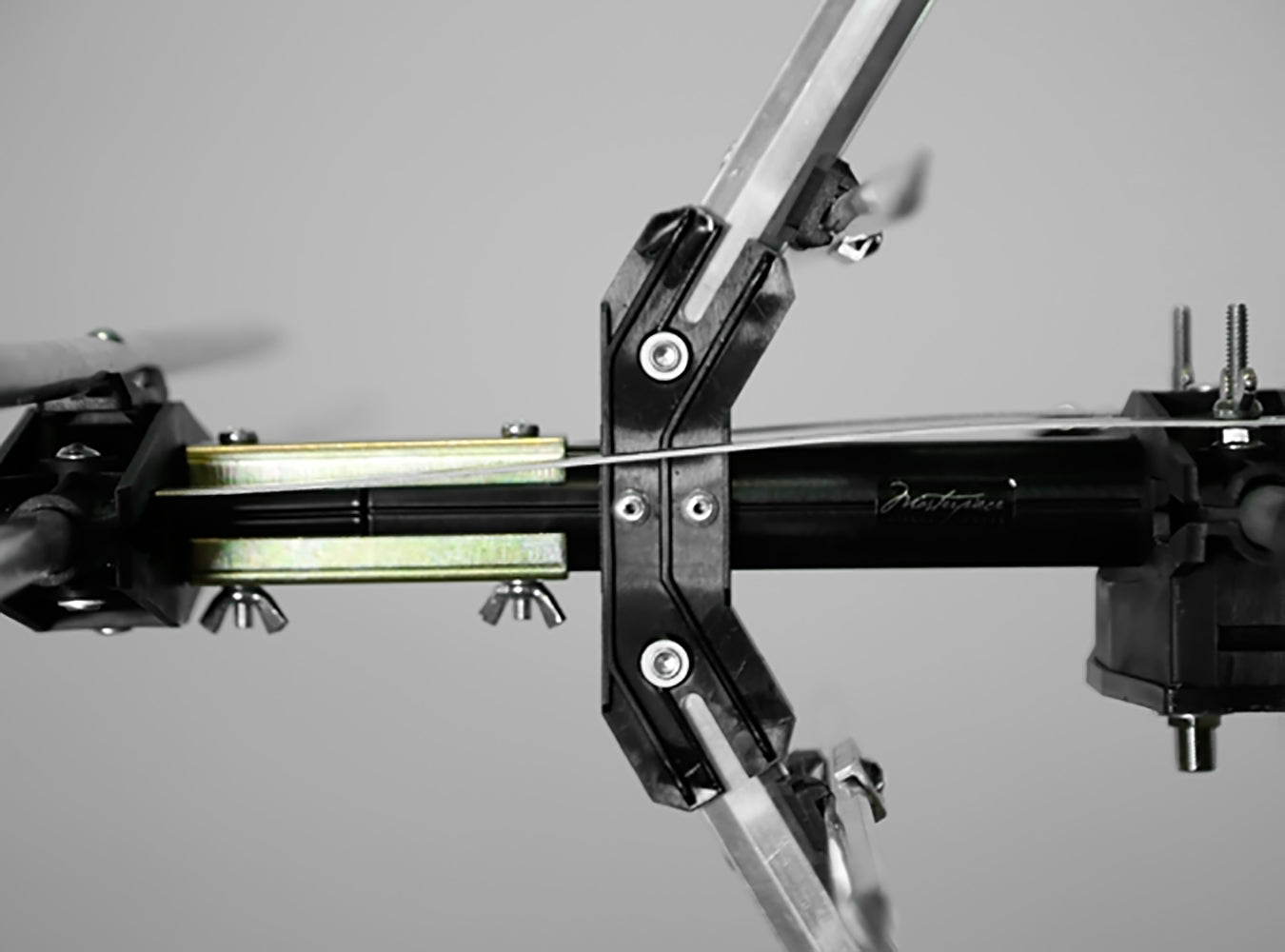

Number of Elements | 28 |
Max Element Width | 100.5" |
Mounting Clamp | U-bolt up to 2.5" |
Turning Radius | 72" |
Output Connector | F-type |
UPC | 020572050203 |

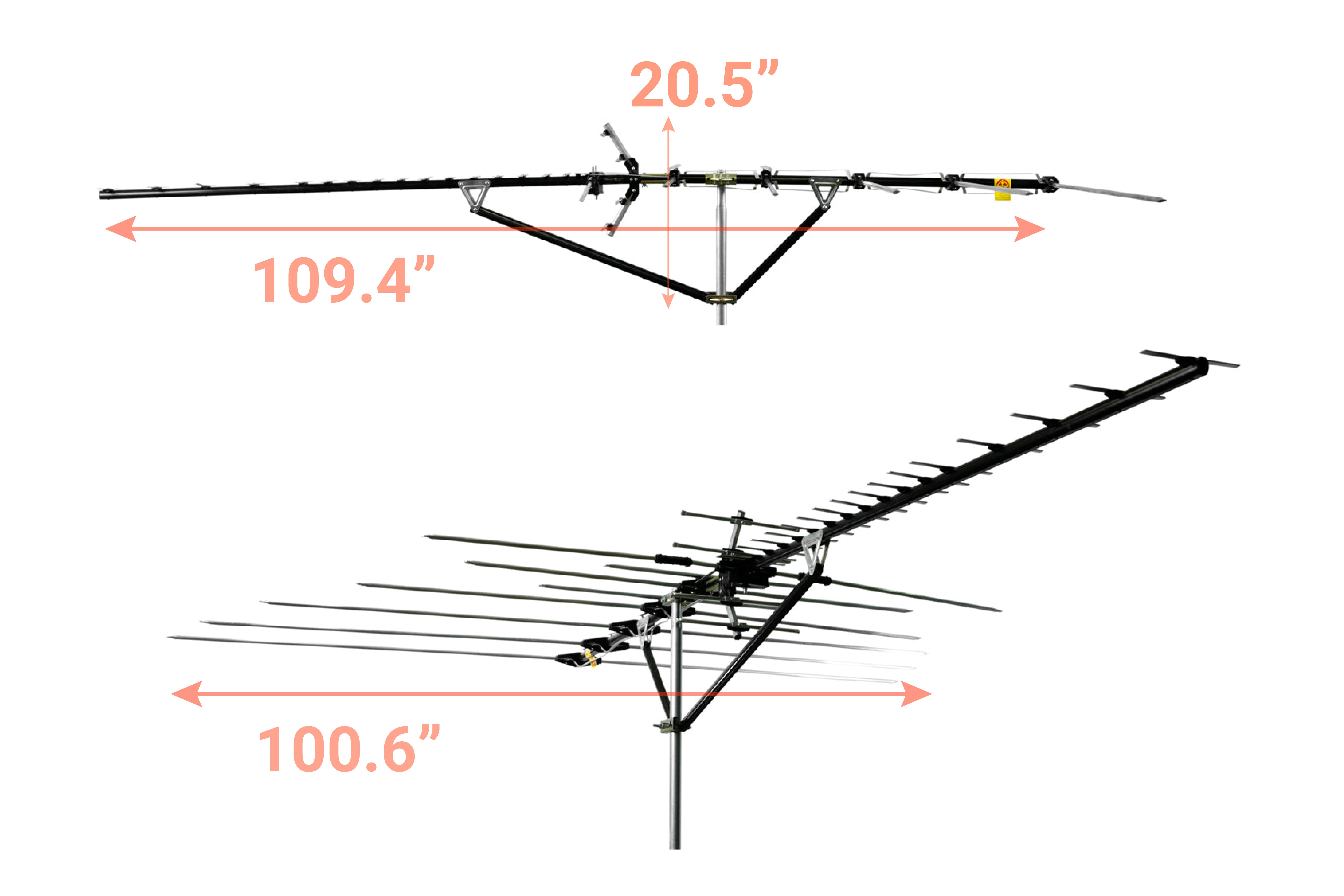

Size (product) | 109.4 x 100.6 x 20.5 in |
Weight (product) | 11.5 lb |
Wind Resistance | (at 100 mph, no ice) – 30 lb |
