Ultra Mini 1


$45.00

Overview

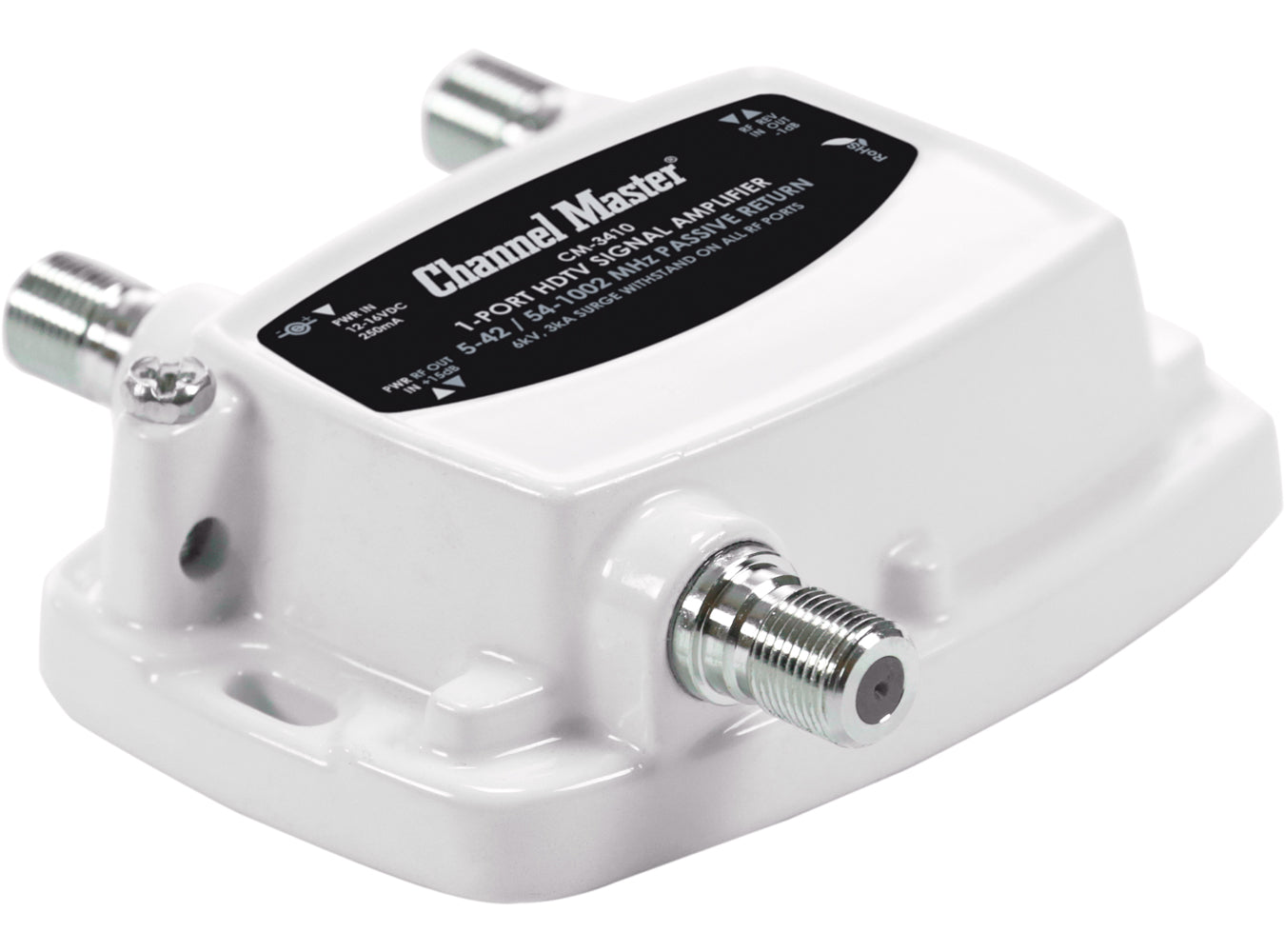

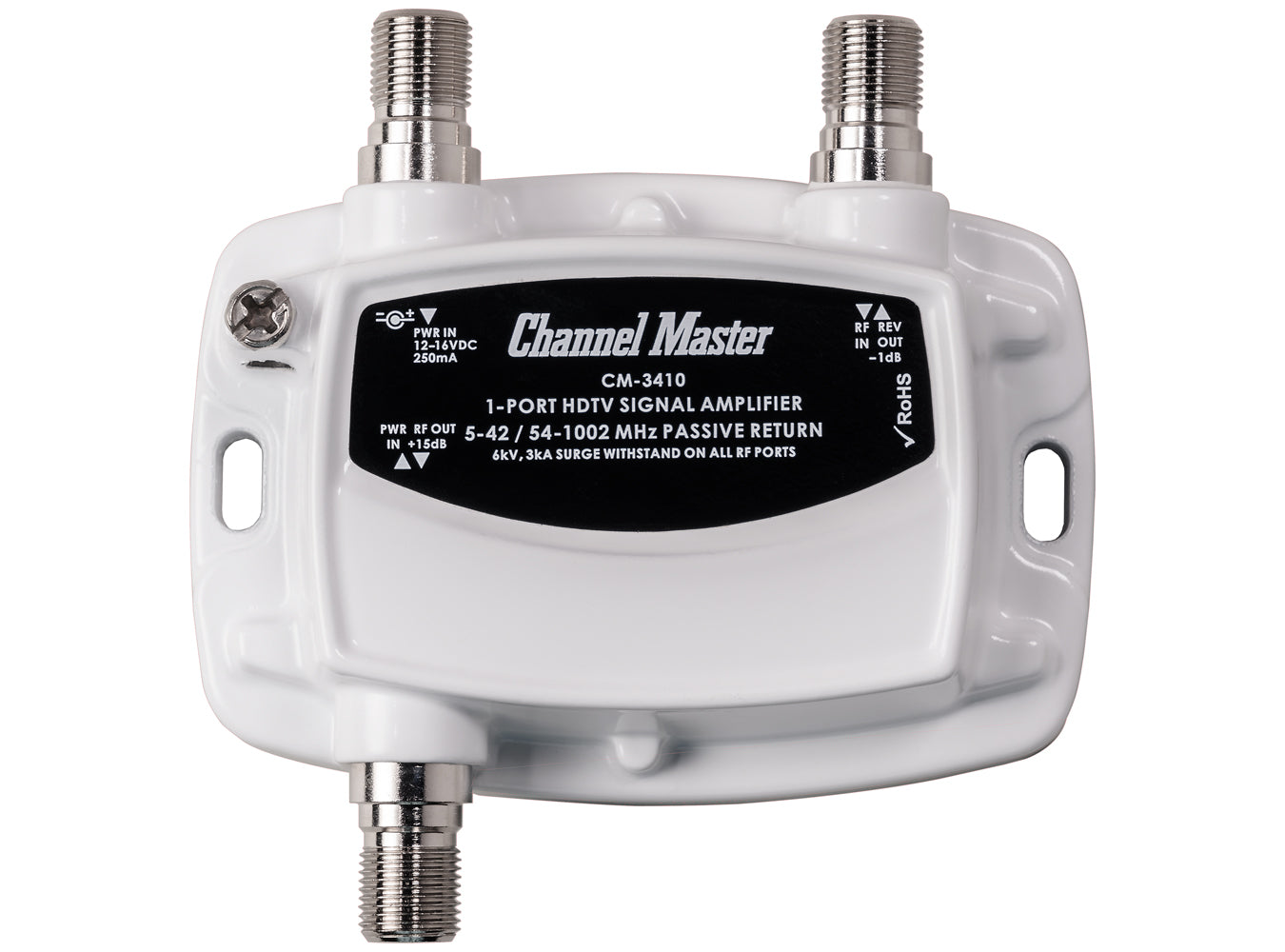

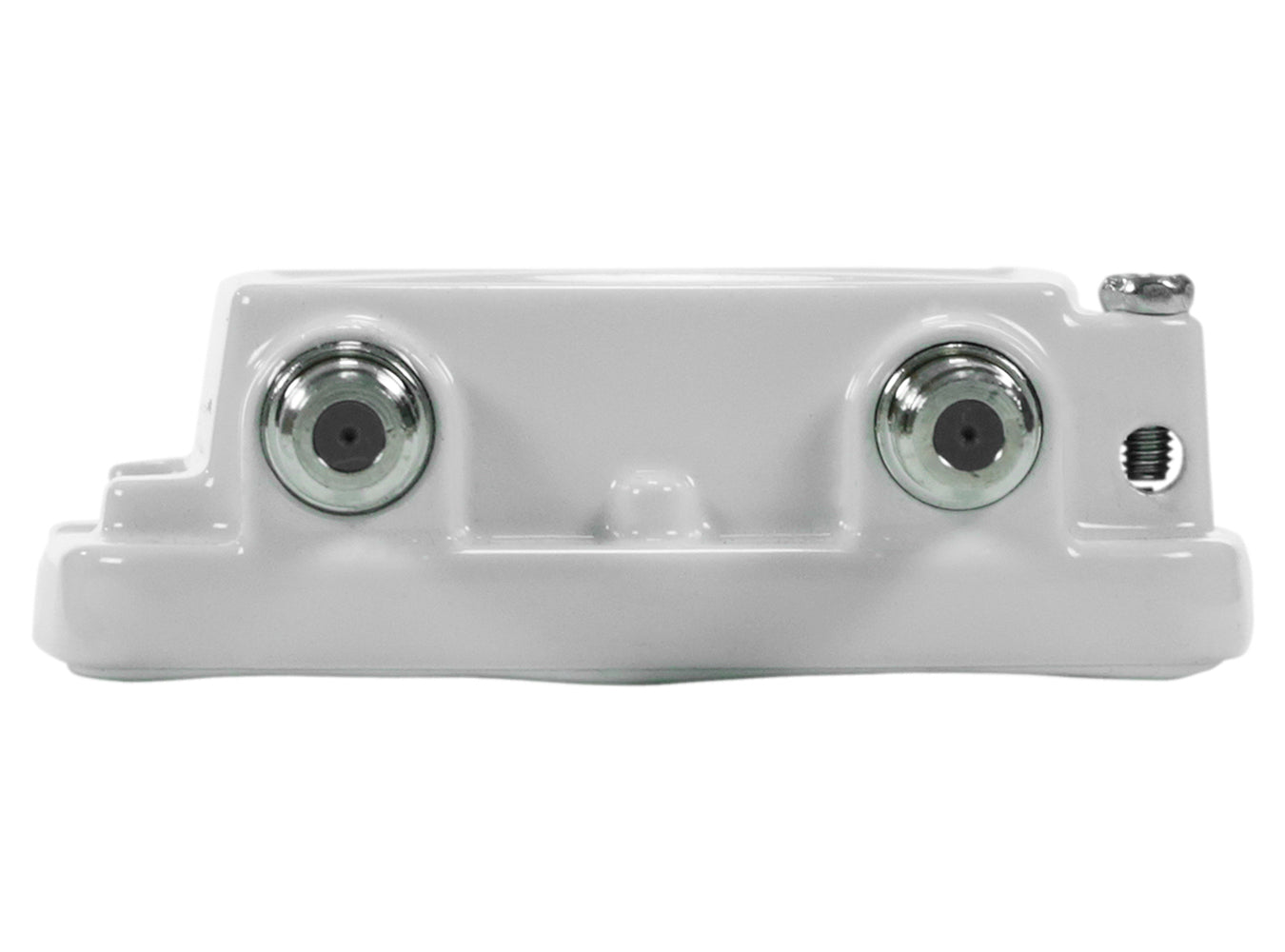

The Channel Master Ultra Mini 1 distribution amplifier will boost TV signals, increasing the overall signal strength for distribution throughout the home. The Ultra Mini 1 has a single output port and can be used in HDTV, CATV, off-air, analog and digital RF distribution applications where high performance and reliability are required.

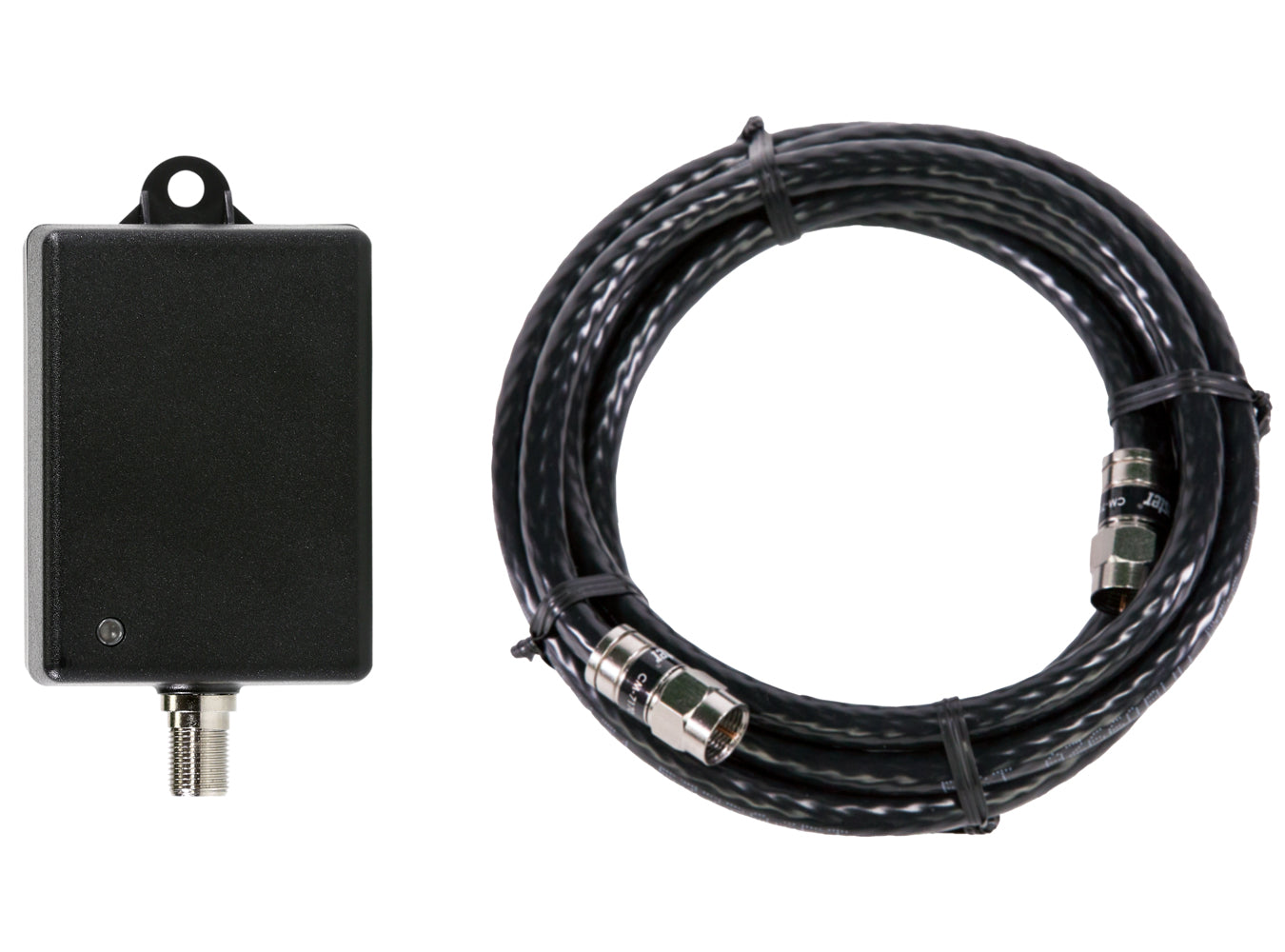

What’s Included

Ultra Mini 1 Distribution Amplifier
Power Adapter
Coaxial Cable
User Guide
1-Year Limited Warranty

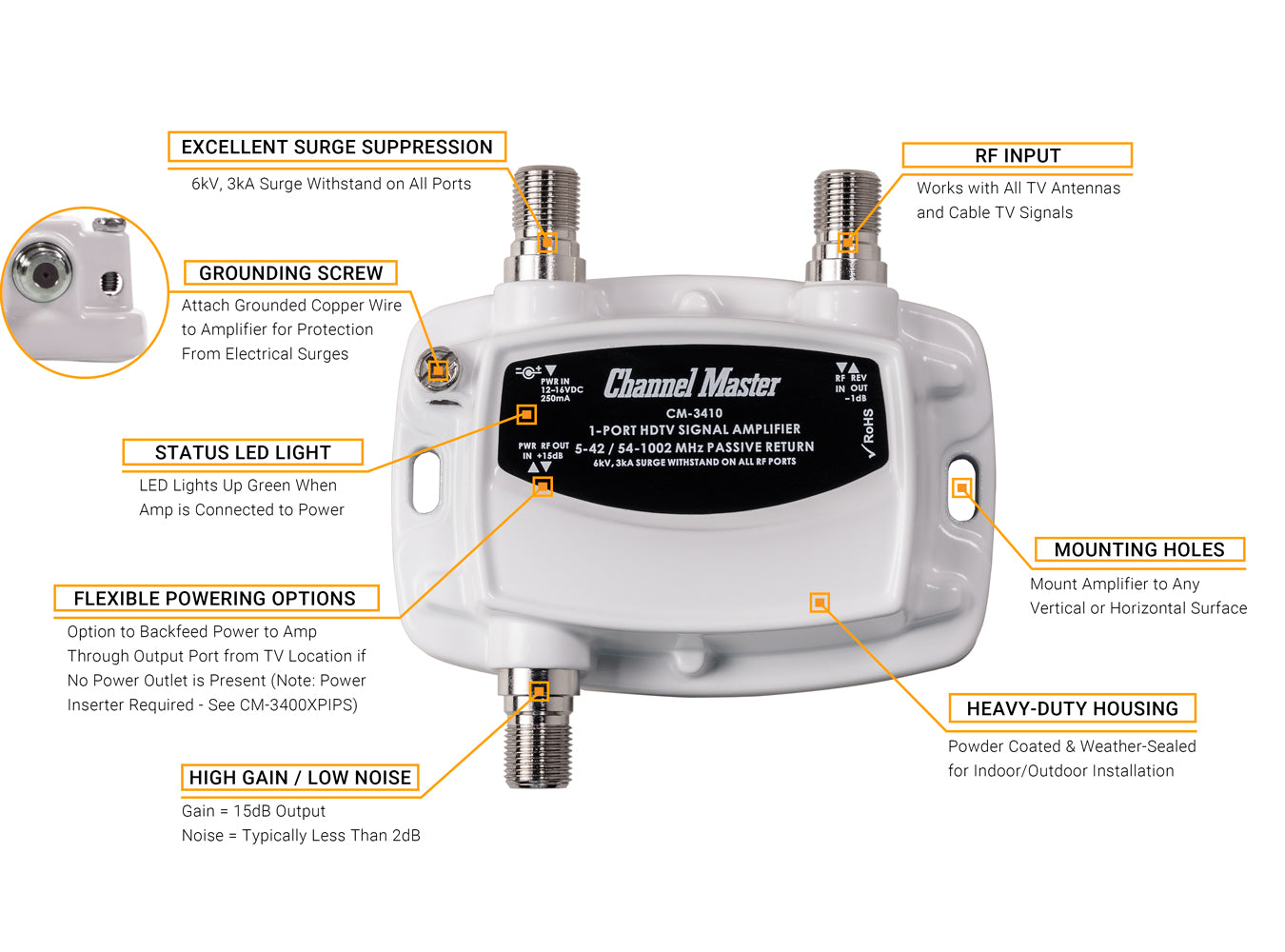

Features

Miniature Size for Space-Saving Installations
Single Output Port
Compatible with All TV Antennas
Will Support ATSC 3.0, NextGen TV and 4K Broadcast when Available
Professional-Grade Performance
Powder Coated and Weather-Sealed Housing for Superior Corrosion Protection
Excellent Surge Withstand Capability
Offers Return Path for Cable Modem Applications
Supports Both Analog and Digital Broadcast Signals
Patented Digital Seizure Mechanism (DSM) for Superior Center Conductor Retention, Surface Area Contact and Electrical Performance

Tech Specs

Power Supply Input Voltage 110-240v, AC ~ 50/60Hz, 200mA (Max)
Power Supply Output Voltage +13.2v DC, 500mA, 6.6W (Max)
Forward Frequency Range 54 to 1002 MHz
Return Path Frequency Range 5 to 42 MHz
Gain +15dB
Noise Figure Typically Less than 2dB
Max Output Level 25 dBmV
Max Input Level 10 dBmV
Passive Return -1.0 dB
Operating Temperature -40 C to +60 C
Connector F-Type
Size (Product) 3.5 x 2.5 x 1 in
Size (Packaging) 5.75 x 8.5 x 2.25 in
Weight (Product) 5 oz
Weight (Packaging) 1.3 lb
