Masterpiece 100
The Masterpiece 100 is a directional (log periodic), line-of-sight outdoor TV antenna that receives high definition and digital signals from a single direction. This antenna has a reception range of up to 100 miles and is designed to withstand extreme outdoor conditions.
Recommended Alternative: Pro-Model Antenna
The Pro-Model antenna is highly recommended by Channel Master antenna engineers because it will provide a much better customer experience. - It is easier to assemble and mount, it will hold up better in extreme weather, it is upgradable and repairable, and it’s made in the USA. To learn more about the Pro-Model Antenna, Click Here.
- Overview
- Specifications
- Reviews
-
$249.00
Overview
The Masterpiece 100 is a directional (log periodic), line-of-sight outdoor TV antenna that receives high definition and digital signals from a single direction. This antenna has a reception range of up to 100 miles and is designed to withstand extreme outdoor conditions.
Recommended Alternative: Pro-Model Antenna
The Pro-Model antenna is highly recommended by Channel Master antenna engineers because it will provide a much better customer experience. - It is easier to assemble and mount, it will hold up better in extreme weather, it is upgradable and repairable, and it’s made in the USA. To learn more about the Pro-Model Antenna, Click Here.
Long range directional (line of sight), rugged outdoor TV antenna up to 100 miles
What’s Included
Masterpiece 100 |
Hardware (Mast, Amplifier and Coax Cable Not Included) |
Installation Guide |
1-Year Limited Warranty |
Features
Reception Range | 100 Miles |
Type | Outdoor |
Reception Pattern | Directional |
Built-In Amplifier | No |
Installation | Roof, Mast, Eave, Chimney |
Tech Specs
Electrical Specifications
Bandwith | 54 to 216 and 470 to 700 MHz |
VHF Gain | 10dB |
UHF Gain | 16dB |
Front to Back Ratio | 17dB |
Return Loss | N/A |
Impedance | 300 Ohm (75 Ohm balun included) |

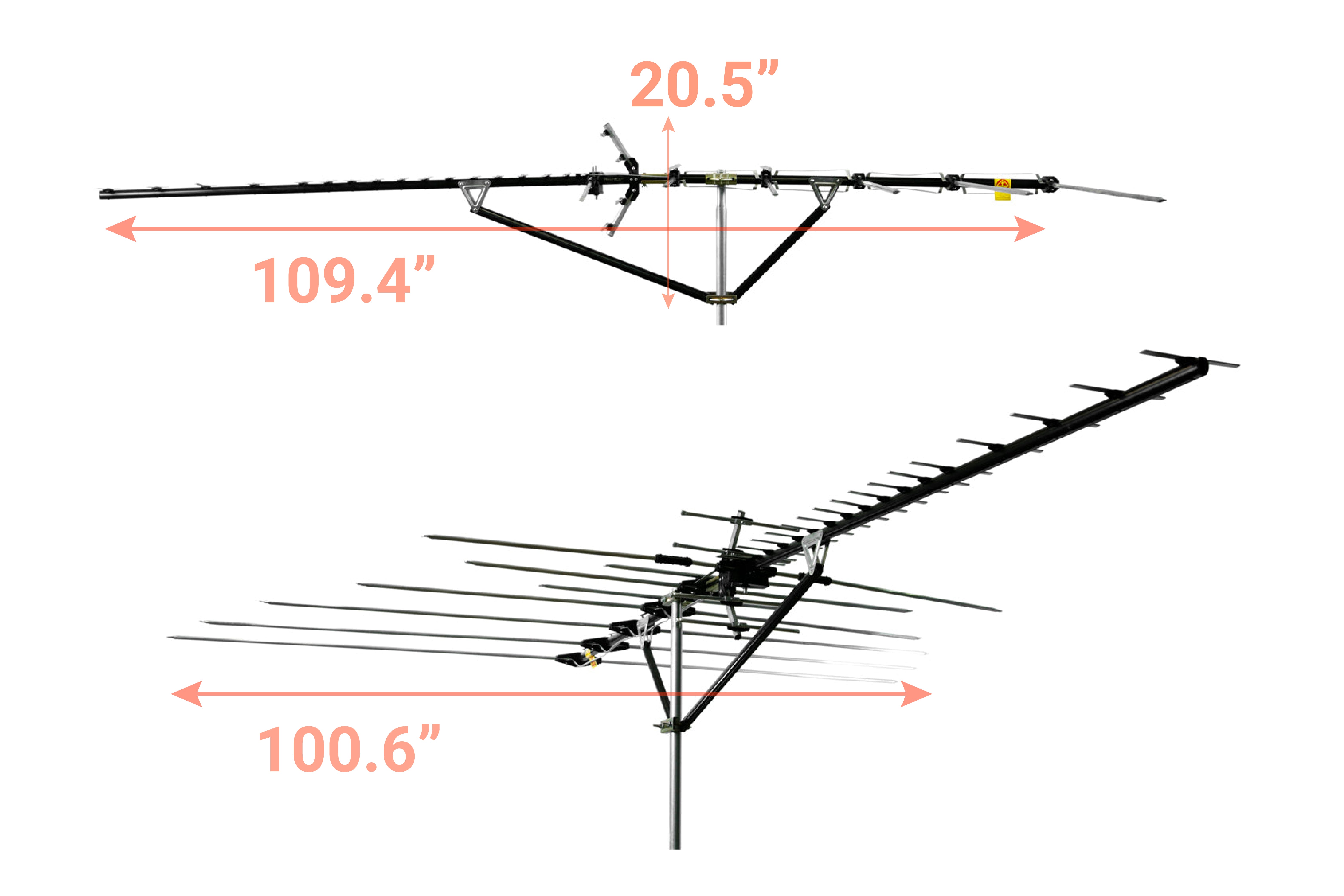

Mechanical Specifications
Boom Length | 109" |
Number of Elements | 28 |
Max Element Width | 100.5" |
Mounting Clamp | U-bolt up to 2.5" |
Turning Radius | 72" |
Output Connector | F-type |
UPC | 020572050203 |
Size (product) | 116" x 101.5" x 20" |
Weight (product) | 11.5 lb |
Wind Resistance | (at 100 mph, no ice) – 30 lb |
