FLATenna+


$49.00

Overview

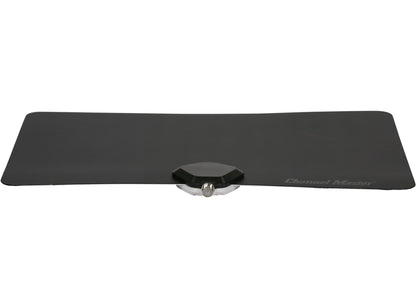

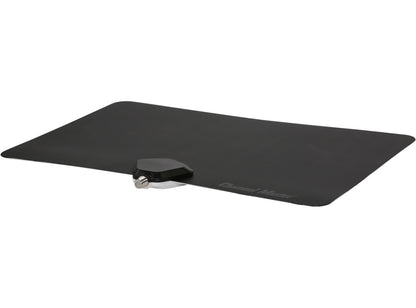

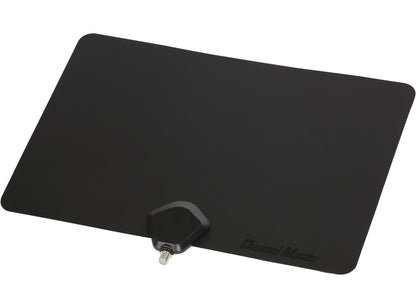

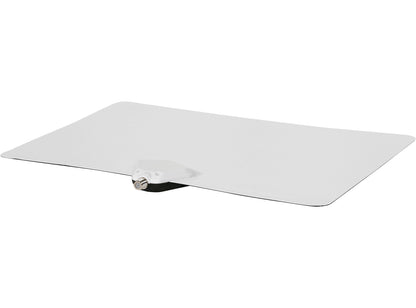

The FLATenna+ Amplified indoor TV antenna consists of our popular and highly regarded FLATenna indoor antenna and our MicroAmp indoor antenna amplifier. The FLATenna is already regarded as one of the best performing indoor TV antennas on the market. The FLATenna+ will increase signal strength providing increased channel reception and reducing issues with channels having poor signal quality. The included amplifier (MicroAmp) has been fine-tuned for optimal performance when used with the FLATenna. If an indoor antenna is your only option, the FLATenna+ is one of the best options on the market. It is easy to install and provides the flexibility of adding amplification to boost signals in indoor environments where OTA signal is hard to receive.

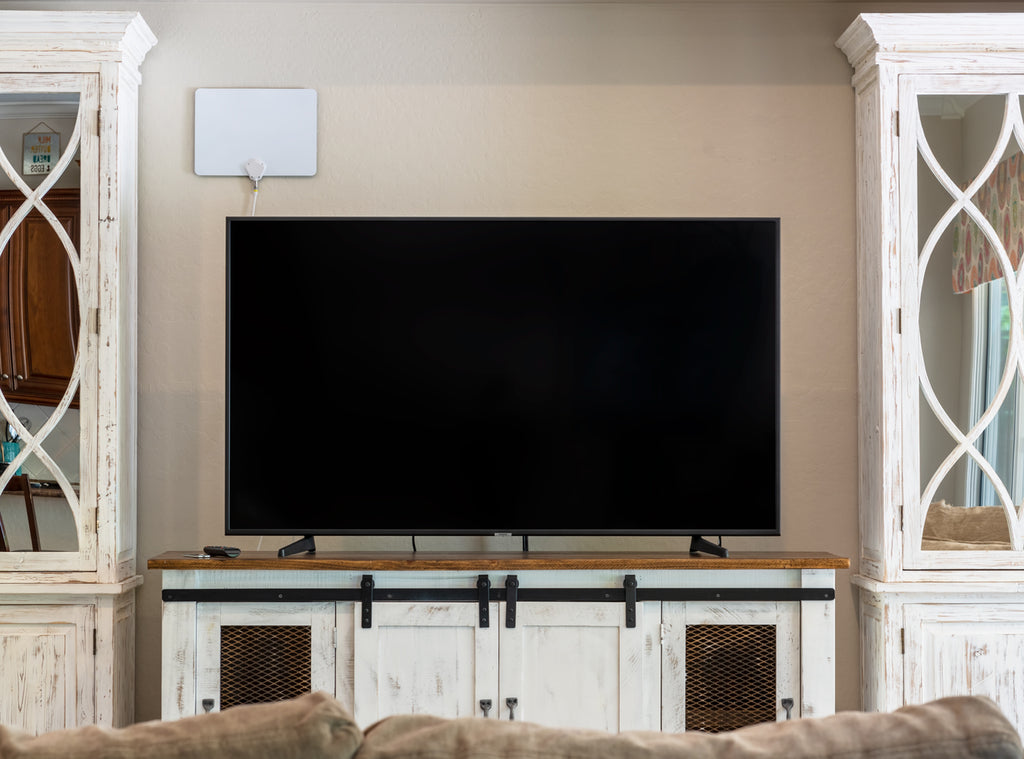

FLATenna+ was designed to be a low-cost yet high-performance amplified indoor TV antenna. Channel Master customers have had great success with our original FLATenna and the FLATenna+ is an enhanced version that adds amplification. The included amplifier (MicroAmp) uses a USB type connection to power the amplifier directly from the USB port on your TV or from a standard electrical wall outlet. The antenna is easy to install and includes adhesive tabs that make it simple to attach it to the wall without making holes or damaging the wall. The FLATenna+ has an increased reception range of up to 50 miles in areas with strong signals.

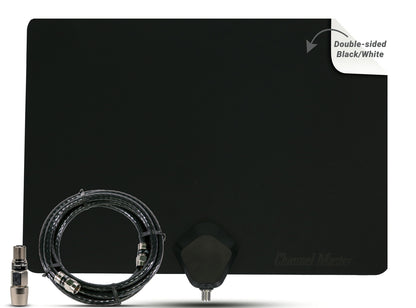

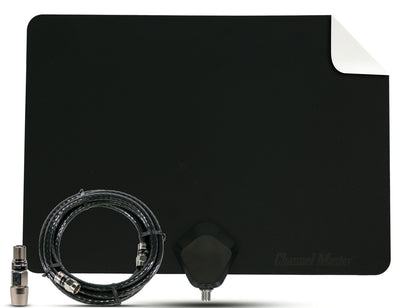

What’s Included

FLATenna (CM-4001HDBW)

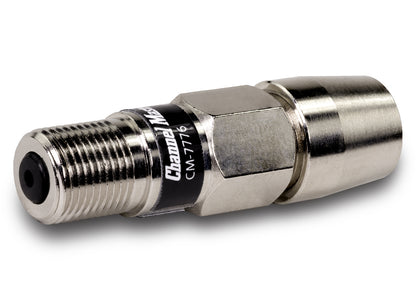

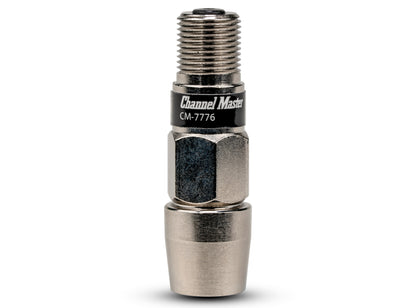

MicroAmp (CM-7776)
Power Inserter (CM-7777HDXPI)
Mini USB Power Cord
USB Power Adapter
Coaxial Cable
Adhesive Strips for Mounting
Instruction Sheet
1-Year Limited Warranty


Features

Reception Range Up to 50 Miles
Type Indoor
Reception Pattern Omni-directional
Amplifier Included Yes

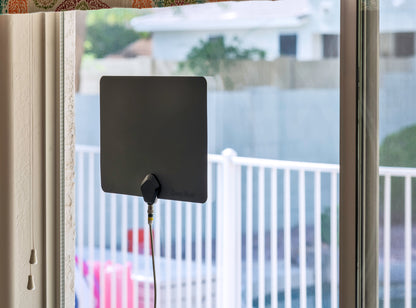

Installation Wall, Window
Paintable Match Your Home's Décor (Non-Metallic Paint Only)

Tech Specs

Antenna Specifications

VHF Gain 3 dB
UHF Gain 6 dB
Impedance 75 Ohm

Amplifier Specifications

Impedance (Input and Output) 75 Ohm
Connector F-type
Frequency Range 50MHz~700MHz
Gain 10dB
Noise Figure 3.5dB
UL listed Yes
RoHS Compliant Yes
Input Return Loss <-6.5
Output Return Loss <-10
Size (Product) 13.5L x 10.75H x 0.75W in
Weight (Product) 1 lb 3.5 oz



Choose a Model

35 MI Range Antenna
50 MI Range Antenna



Customer Reviews

Based on 288 reviews
86%
(248)
13%
(38)
1%
(2)
0%
(0)
0%
(0)
G
Greg (Yukon, OK)
Just what I needed

I needed to replace an older (and cheaper) TV antenna and just happened upon the Channel Master website. My old antenna was constantly cutting out with audio dropouts and a constantly pixelating picture. The price was right, so after reading all the positive reviews, I immediately ordered the FLATenna+. I'm very satisfied with my purchase! Hooking everything up was a breeze and I immediately noticed better reception and picture quality, and I discovered quite a few new stations. Excellent picture and sound quality...and no more audio dropouts! I highly recommend the FLATenna+. It's top quality and the price cannot be beat.

R
Robert Cornett
I Purchased Two

I purchased two 50-mile FLATenna+ devices as my cable bill has now risen to $275.00/month. Based my channel master purchase on online reviews and recommendations (and made in U.S.A.) Arrived quickly and well packaged.
Both came with a 12' coax and an amplifier (if needed). I also purchased an additional 25' coax as I wasn't sure where I would end up putting the antenna for our den tv. So far I have one installed, not near a window, without the amplifier, in an interior room, and it gets 40+ channels clear as a bell. Will be installing FLATenna #2 tomorrow. So simple to install and hook up.
I should have cut the cable tv cord long ago. Also dropped the cable internet and now have 2GB fiber for less than $100. And with my Amazon Fire TV, its apps, and my netflix and Prime subscriptions, I lack for nothing.
Overall I will be SAVING $190.00/month over what I previously paid for my cable.

J
JudyL
Excellent

Works so much better than the landlord's roof antenna on our 50-unit apartment building. We are located midway between Rockford, IL and Madison, WI, which is where our TV stations are located. I had almost no channels before installing FLATenna, but now I have 43.

F
Frank G
Works Great!

After adjusting it on a window on a five story residential building, I got it to work well. Works better than an indoor antenna I got from Amazon! Channel Master is great and I advise anyone to first try their antennas over what you can get at Amazon or other companies.

D
David D.
Works Great!

I live in the Hatfield PA area about 13 to 25 miles from the Philadelphia broadcast towers. I get 50 channels and they all come in great. Had to move the antenna around a little to make this happen, but now i found a good spot and haven’t moved the antenna at all for about 3 weeks.
Sometimes on windy days channel 6 gets a little bad, but 50 free channels you can’t beat it.
