Digital Advantage 45


$75.00

Overview

The Digital Advantage 45 is a directional (yagi), line-of-sight outdoor antenna that receives high definition and digital signals from a single direction and is optimized for high VHF and UHF signals. This antenna has a reception range of up to 45 miles.

Recommended Alternative: Pro-Model Antenna
The Pro-Model antenna is highly recommended by Channel Master antenna engineers because it will provide a much better customer experience. - It is easier to assemble and mount, it will hold up better in extreme weather, it is upgradable and repairable, and it’s made in the USA. To learn more about the Pro-Model Antenna, Click Here.



Short range directional (line of sight) outdoor TV antenna up to 45 miles.


What’s Included

Digital Advantage 45
Hardware (Mast, Amplifier and Coax Cable Not Included)
Installation Guide
1-Year Limited Warranty


Features

Reception Range 45 Miles
Type Outdoor
Reception Pattern Directional
Built-In Amplifier No
Installation Roof, Attic, Mast, Eave, Chimney

Tech Specs

Electrical Specifications

Bandwith 174 to 216 and 470 to 700 MHz
VHF Gain 2.5dB
UHF Gain 8.5dB
Front to Back Ratio 10dB
Return Loss N/A
Impedance 300 Ohm (75 Ohm balun included)

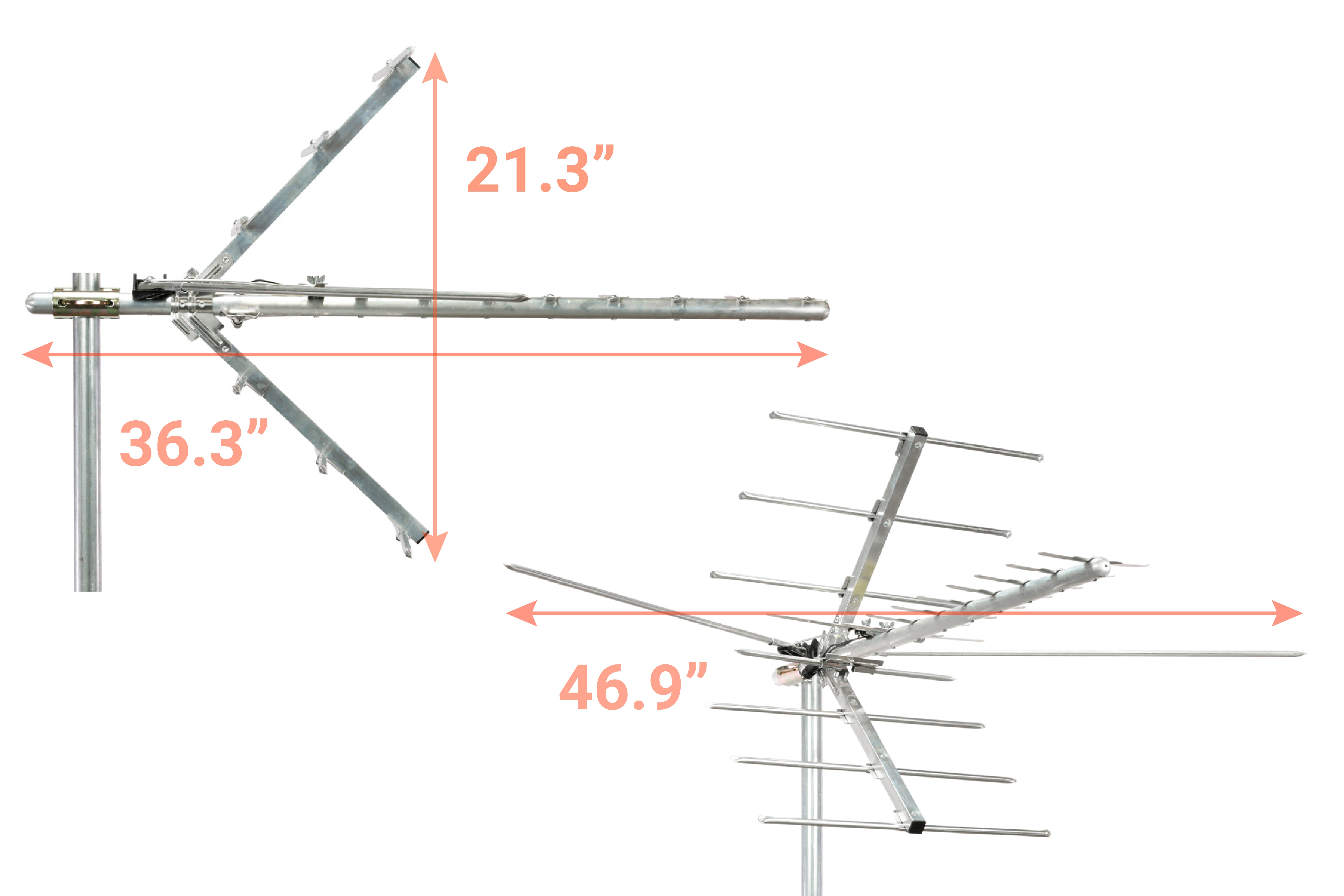

Mechanical Specifications

Boom Length 36.5"
Number of Elements 22
Max Element Width 47.5"
Mounting Clamp U bolt up to 1.75"
Turning Radius 3 ft.
Output Connector F-type
Size (product) 36.5 x 47 x 22 in
Size (packaging) 37.25 x 5.75 x 5.5 in
Weight (product) 1.5 lb
Weight (packaging) 3.5 lb
Wind Resistance (at 100 mph, no ice) – 22 lb

Choose a Model

45 MI Range Antenna
60 MI Range Antenna 100 MI Range Antenna


Customer Reviews

Based on 36 reviews
81%
(29)
14%
(5)
3%
(1)
3%
(1)
0%
(0)
J
Jacob Harp
Great Antenna, Quality, Easy.

The lil advantage 45 was a perfect fit for my home, my house is roughly 5 miles from the TV towers as a bird flys, but i have a large tree that obstructs the signal path so the A45 seemed like a good choice. Setup was stupid easy and there is a YouTube video if you need it, literally takes 5 min out of the box. This was an attic install that was used with channel masters attic kit, it took me longer to run the coaxial than to get this installed in my attic, maybe took me 20 minutes and that was taking my time. I guesstimated the angle and height of the antenna and crossed my fingers. I used the usb amplifier that the previous homeowners left in my living room, maybe a $10 item. I had an excessive cable run length and was worried about what i would get for channels. I fired up the TV and hit the auto channel tune, I got every available channel crystal clear with no delays, no interference lines, nothing. I had a temp setup with one of those cheap indoor paddle antennas and it maybe got 25% of the channels on a good day. The reception is perfect, fast and free ! Dont buy cheap Amazon crap.

R
Robert Snyder
Hurricane Ian Survivor and works great!

Had to write a review. I have the largest antenna pointed to Tampa (60 miles away) and wasn't getting my more local stations in another direction without digitizing, so I picked up this and combined the signal with the two antennas without an issue. Fast forward a couple years, a small storm called Hurricane Ian came our way to SW florida so I took down my huge antenna and left this on my Rohm tower figuring this should survive some 60+ mph winds projected. We unfortunately took a direct impact and despite winds well over 120 MPH, the antenna survived along with their preamp. Once I got generator power going and plugged back in the preamp, we had TV once again. Highly recommend.

r
robert
used one day so far

Installed antenna yesterday so far working well.

R
Richard Wilson
Go with Channel Master

I tried others, they just do not compare in quality or functionality to Channel Master. I have a Channel Master preamp and antenna, they are simply the best!

k
ken harris
Antenna Upgrade

Upgraded my OTA from another manufacturer to the Digital Advantage 45 and I used the video to help and it was very easy to follow. Mounted the antenna in the attic and everything has gone well. I also added a TV Antenna Booster 4, because there were no 2 port boosters in stock, helps to provide a solid display through my DVR+ that I bought years ago. I'm very pleased with what I have gotten.
